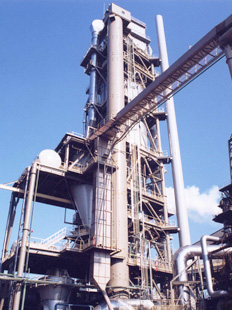

Conveyance of materials with a high solids loading ratio over long distance at low speed
Summary
Compared with the Low-Pressure Pneumatic Conveying System (vacuum type and pressure type), this system can convey a material with a high solids loading ratio over a longer distance at lower speed. This system has actual results of conveying various powder and granular materials.
Feature
- This system has a blow tank with the fluidization mechanism. The mechanism allows the system to convey materials with a high solids loading ratio (high density) at low speed.
- The automatic operation mode saves labor.
- The system is sealed completely and does not pollute the work environment.
- This system uses small-diameter pipes so that the pipes can be laid freely and saves installation space.
- The system does not have moving parts, such as a rotary valve, so that it can be operated with a minimal amount of maintenance.
Application Specification
- For conveying raw materials of steel and nonferrous metals, flux, and pulverized coal
- For conveying ceramics, cement, unslaked lime, slaked lime, calcium carbonate powder, granulated sugar, wheat flour, grain, and salt
- For conveying waste plastic, compound materials, and pellets

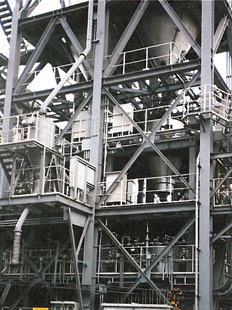

For continuous conveyance without a break
Summary
This system can convey powder and granular materials continuously without a break. This system has actual results of conveying large amounts of materials over long distances.
Feature
- The blow tanks are installed in a row. While one of them conveys powder or granular material, the other one fills the material. That is to say that the material is conveyed continuously by either of the tanks.
- The two blow tanks share a compressor and convey piping. The conveying amount can be increased by conveying the materials continuously using the two tanks.
Application Specification
- For conveying raw materials of steel and nonferrous metal, flux, and pulverized coal.
- For conveying ceramics, cement, unslaked lime, slaked lime, calcium carbonate powder, granulated sugar, wheat flour, grain, and salt.
For Continuous Conveyance of Fixed Amount Material
Summary
This system can convey a fixed amount of powder and granular materials continuously. The Pulverized Coal Injection (PCI) System has actual results of conveying materials.
Feature
- Two blow tanks are installed in line. The material is charged from the top of one of the tanks while the other tank conveys the material so that the material can be conveyed continuously.
- A fixed amount of material can be conveyed and the amount can be set arbitrarily.
Application Specification
- For conveying raw materials of steel and nonferrous metal, flux, and pulverized coal.
Please feel free to contact us if you have any questions or need advice.
Contact FormWe also accept inquiries or requests for constructions by phone or fax.
