To convey powder and granular materials without damaging them.
(Features of the system in terms of conveyance speed)

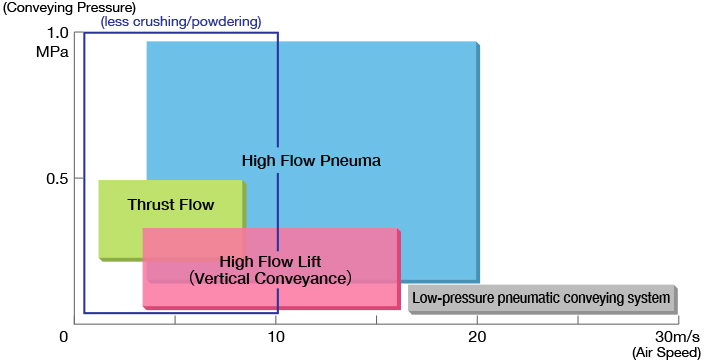

~ Comparison with other systems in terms of conveyance speed ~

High pressure pneumatic convey systems can convey powder and granular materials at low speed to reduce crushing and powdering to a minimum.

The systems can convey materials at a speed of 10 m/s* or less, at which the crushing and powdering of the materials can be kept to a minimum.
* The speed may differ depending on types of the materials.

To convey materials over long distances
(Features of the system in terms of conveyance distance)

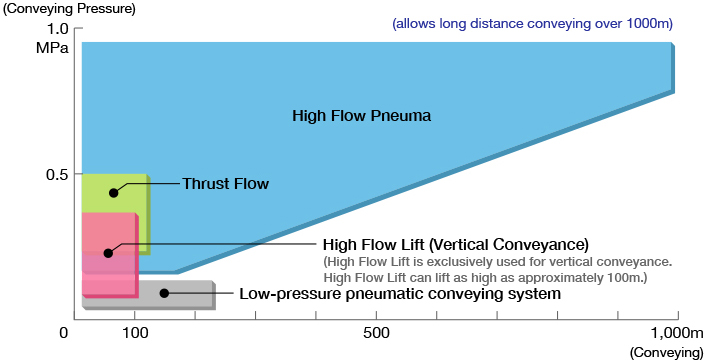

~ Comparison with other systems in terms of conveyance distance ~

High pressure pneumatic convey systems can convey materials over longer distances. We have accomplishments of conveying materials over long distances of 1,000 m or longer.

To carry out mass conveyance
(Features of the system in terms of conveyance capacity)

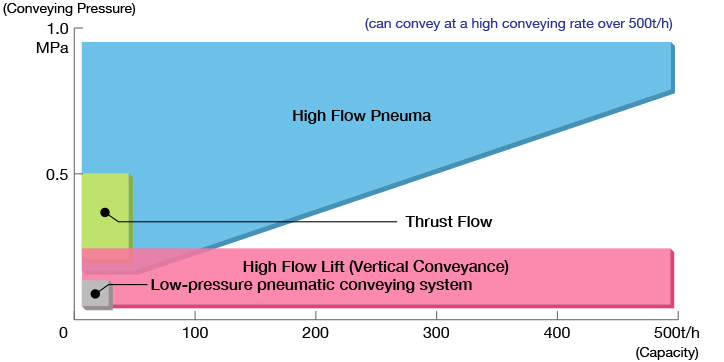

~ Comparison with other systems in terms of conveyance capacity ~

High pressure pneumatic convey systems can convey a larger amount of material. We have accomplishments of conveying more than 500 t/h.

To feed a fixed amount of material
(Features of the system in terms of control method)
~ Comparison with other systems in terms of pressure control ~

High pressure pneumatic convey systems can convey a fixed amount of material. The fixed amount can be controlled variably.
High Flow Pneuma (continuous-feed type) adopts a control system and can convey a fixed amount of material continuously.
